Sampling valves
Product/Sampling Valves

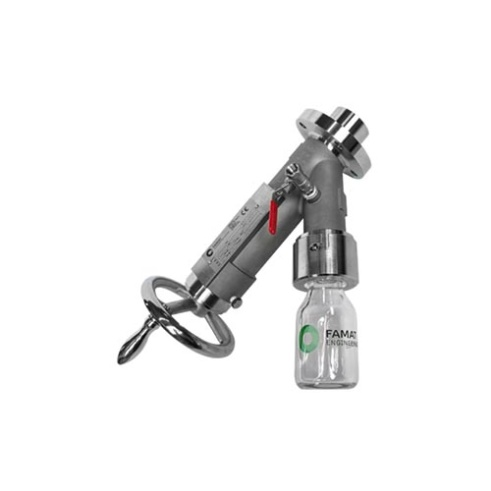

125A Standard
125A Standard Type 125A is the standard DN50 sampling valve by FAMAT. Used for sampling applications of powders, granules, pastes and liquids under process conditions in the pharmaceutical, chemical and food industries.

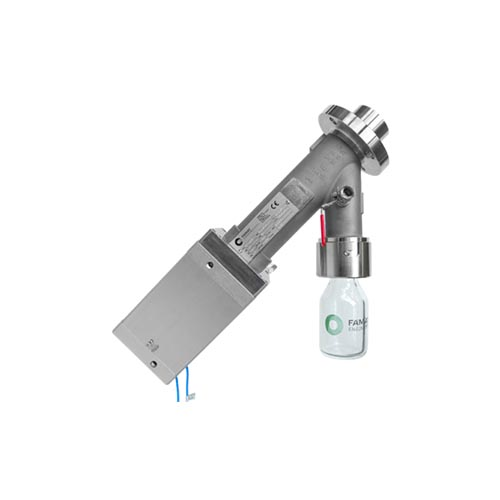

125AUT Automatic
Standard sampling valve with a double acting pneumatic actuator. Proximity switch detects the open / closed position of the valve.

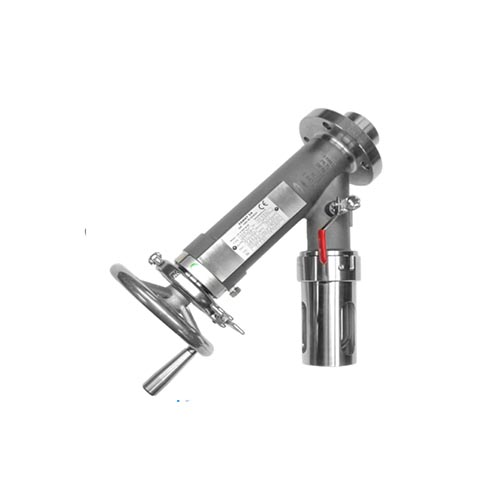

125TC TRI-Clamp Easyclean
This sampling valve has one 2.5” Tri-Clamp (TC) near the handwheel. It is called easy-clean because the piston can be removed from the valve housing with minimal effort , allowing full cleaning of inner surfaces of the valve’s body between batches.
125OEL High Containment
125OEL High Containment This new compact OEL High-Containment sampling device allows the removal of a product sampled under contained conditions. The OEL (Occupational Exposure Limit) describes the maximum concentration of a drug substance which can be tolerated in the air of the production room without any negative effect to the health of the operators. (OEL) level range : 1-10μg / m3 (without aspiration) (OEL) level range : below 1μg / m3 (with aspiration)
